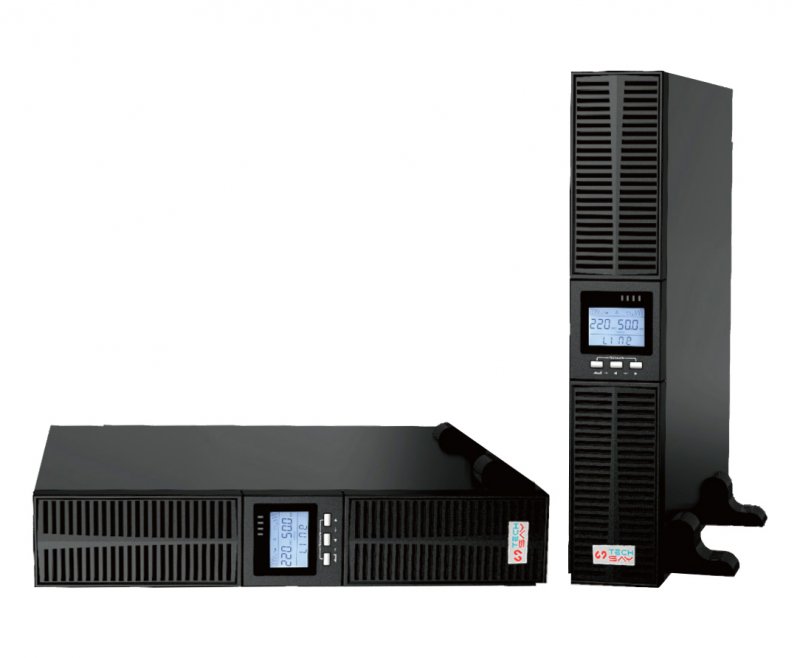

The TechSay SDE 1011XR single-phase UPS uses On-Line Double Conversion technology to deliver clean, stable, and pure sine wave power at 10KVA capacity. Its rack-mount design makes it an ideal choice for data centers, server rooms, and critical network infrastructure.
With a digital signal processor (DSP) and an efficiency of over 94% at full load, the SDE 1011XR precisely regulates voltage, frequency, and battery charging while minimizing energy waste.
Zero transfer time ensures that connected equipment experiences no interruption during power failures or fluctuations, protecting servers and sensitive electronics from data loss and hardware damage.
The intelligent battery management system extends battery service life by adjusting charge current and discharge voltage, preventing premature wear and overheating.
Key Features
- Intelligent battery management
- Pure sine wave output
- DSP digital control processor
- Advanced digital paralleling technology
- Output power factor of 1
- Automatic frequency sensing (50/60 Hz)
- Comprehensive protection: short circuit, overload, over-temperature
- Automatic self-test at startup
- RS232 port, optional USB/RS485/SNMP/Dry Contact
- RJ45 port for network/phone line surge protection
- LCD panel for real-time monitoring and parameter adjustment
- ECO mode with efficiency exceeding 98%
Technical Specifications
| Specification | Value |
|---|---|
| Model | SDE 1011XR |
| Technology | On-Line Double Conversion |
| Apparent Power | 10KVA |
| Active Power | 10kW |
| Input Phase | Single Phase |
| Input Voltage Range | 208/220/230/240 Vac |
| Input Frequency | 50/60 Hz (auto-sensing) |
| Input THDi | Less than 5% |
| Output Frequency | 50/60 Hz |
| Output Waveform | Pure Sine Wave |
| Output THDv | <1% (linear load), <4% (non-linear load) |
| Overload (Battery Mode) | 105%~110%: 10 min, 110%~125%: 1 min, 126%~150%: 30 s |
| Internal Battery | No |
| External Battery | Ceramic terminal for external pack |
| Number of Batteries | 16 pcs |
| DC Voltage | 192 Vdc |
| Efficiency | >94% at 100% load, max 95% at 60% load, >98% in ECO mode |
| Transfer Time | 0 ms |
| Protections | Short circuit, overload, over-temperature, low battery, over-voltage, under-voltage, fan failure |
| Communication Ports | RS232 (standard), USB/RS485/Dry Contact/SNMP (optional) |
| Display | LCD, LED |
| Operating Temperature | 0~40°C |
| Operating Humidity | 0~95% (non-condensing) |
| Altitude | 1% power derating per 100 m increase |
| Protection Class | IP20 |
| Audible Noise | <55 dB |
| Dimensions | 0 |
| Weight | 0 |
| Packaging Dimensions | 0 |
| Packaging Weight | 0 |
| Form Factor | Rack Mount |
| Warranty | 12 months (from purchase date) |
Frequently Asked Questions
Is the SDE 1011XR suitable for rack server environments?
Yes, its rack-mount form factor, 10KVA capacity, and pure sine wave output make it perfectly suited for standard 19-inch racks, protecting servers, switches, and storage systems in data centers.
Does this UPS include internal batteries?
No, the SDE 1011XR requires an external battery pack. It is equipped with a ceramic terminal to connect a 192 Vdc battery bank consisting of 16 12V batteries.
Can the UPS operate in ECO mode to save energy?
Yes, ECO mode boosts efficiency above 98% by routing filtered mains power directly to the load. While energy savings are substantial, full online mode is recommended for maximum protection of sensitive equipment.
